Switch D-Link DIS-100G-5SW
Switch D-Link DIS-100G-5SW
Switch D-Link DIS-100G-5SW
Switch D-Link DIS-100G-5SW
    Switch D-Link DIS-100G-5SW
    Switch D-Link DIS-100G-5SW
    Switch D-Link DIS-100G-5SW
    Switch D-Link DIS-100G-5SW

    Switch D-Link DIS-100G-5SW

    in stock

    14 cm
    8.00 cm
    17.50 cm
    0.50 kg

    Available payment methods:

    If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Switch D-Link DIS-100G-5SW at an unbeatable price.

    • Approx. dimensions: 11,22 x 2,91 x 8,94 cm
    • Product with plug: Yes
    • Connections:
      • RJ45 x 4
      • RJ45
      • Ethernet LAN
    • Type of plug: Plug EU
    • Colour: Black
    • Ports: SFP x 1
    • Material: Metal
    • Characteristics:

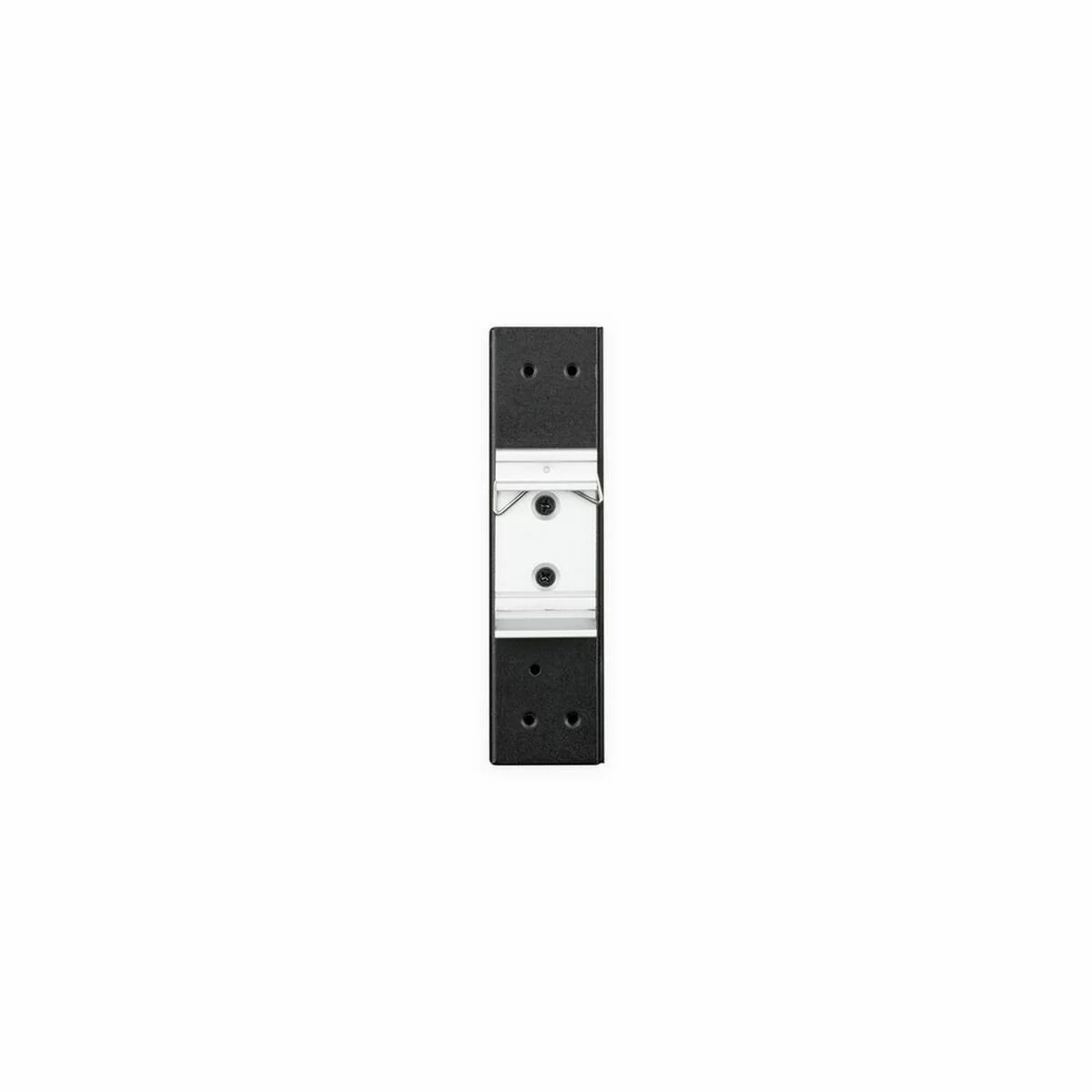

      • Wall mounting
      • LED indicator
    • Holder: Multi-support
    • Number of slots: 1

    The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.Durable, Reliable, and Efficient The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.Power over Ethernet Support The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.Green Ethernet Technology The DIS-100G Series features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.Limited Lifetime Warranty D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.

    • Switch type: Unmanaged
    • Switch layer: L2
    • Traffic shaping: Y
    • Basic switching RJ-45 Ethernet ports quantity: 4
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • SFP module slots quantity: 1
    • Fiber optic connector: LC
    • Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
    • 10G support: N
    • Full duplex: Y
    • Flow control support: Y
    • Broadcast storm control: Y
    • Auto MDI/MDI-X: Y
    • Auto-negotiation: Y
    • MAC address table: 2000 entries
    • Switching capacity: 10 Gbit/s
    • Forwarding rate: 7.44 Mpps
    • Store-and-forward: Y
    • Jumbo frames support: Y
    • Jumbo frames: 9000
    • Multicast support: Y
    • Product colour: Black
    • LED indicators: LAN, Power
    • Wall mountable: Y
    • DIN rail mounting: Y
    • Electromagnetic compatibility: FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
    • Certification: IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE
    • Shipping (inner) case height: 20.5 cm
    • Shipping (inner) case width: 30.5 cm
    • Shipping (inner) case length: 44 cm
    • Shipping (inner) case net weight: 5 kg
    • Products per shipping (inner) case: 10 pc(s)
    • Pallet gross weight (air): 220 kg
    • Master (outer) cases per pallet (air): 36 pc(s)
    • Products per pallet (air): 360 pc(s)
    • Pallet gross length: 120 cm
    • Pallet gross width: 110 cm
    • Pallet height (air): 136.5 cm
    • Pallet gross weight (sea): 321.6 kg
    • Master (outer) cases per pallet (sea): 54 pc(s)
    • Products per pallet (sea): 540 pc(s)
    • Pallet height (sea): 198 cm
    • Shipping (inner) case gross weight: 5.64 kg
    • DC input voltage: 12 - 58 V
    • Power consumption (typical): 2.74 W
    • Power consumption (max): 3.57 W
    • Power protection features: Over current, Reverse polarity
    • Power over Ethernet (PoE): N
    • Operating temperature (T-T): -40 - 75 °C
    • Storage temperature (T-T): -40 - 85 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Heat dissipation: 12.18 BTU/h
    • Width: 112.2 mm
    • Depth: 29.1 mm
    • Height: 89.4 mm
    • Weight: 295 g
    • Package width: 140 mm
    • Package depth: 178 mm
    • Package height: 83 mm
    • Package weight: 500 g
